NO. |
Item |
Technical parameter |
|
1 |
Work pattern |
Passive detection |
|
2 |
Work frequency |
400M, 900M,1.2G,2.4G, 5.2G,5.8G and other commonly used drone frequency |
|
3 |
Detection and identify UAV type |
DJI series, FPV, FEMI, YUNEEC, AUTEL, HUBSAN, Powervision, Tello UAV and video transmission module |
|
4 |
Detection range |
100-2000m (urban environment, tested by DJI AIR2 target) |
|
5 |
Probe azimuth |
0 °~360° (omnidirectional antenna) |
|
6 |
Recognition time |
≤2s |
|
7 |
False alarm rate |
1 time / day |
|
8 |
Capacity of discernment |
The number of drones that can be simultaneously detected and identified ≥ 10 (5 manufacturers) |
|
No. |
ITEM |
Technical parameter |
|
1 |
Work pattern |
Directional passive detection |
|
2 |
The object of action |
DJI (Phanton and Mavic), AUTEL, and HUBSAN |
|
3 |
Work frequency |
2.4G,5.8G |
|
4 |
Detection range |
100-2000 m (urban environment with DJI AIR2) |
|
5 |
Probe azimuth |
≤30° (UAV does not change the frequency during the locked DF mode and is 1 km from the device) |
Jamming mode
Channel
Working frequency
Output power(±1dBm)
CH1
420-450MHz
47 dBm(50W)
CH2
700-840MHz
47 dBm(50W)
CH3
840-930MHz
47 dBm(50W)
CH4
1550-1610MHz
47 dBm(50W)
CH5
1100-1300MHz
47 dBm(50W)
CH6
5150-5300MHz
45 dBm(30W)
CH7
2400-2500MHz
47 dBm(50W)
CH8
5700-5900MHz
47 dBm(50W)
Total output power: 380W
Power consumption : 900W
Power supply: AC90-260V, DC24-28V

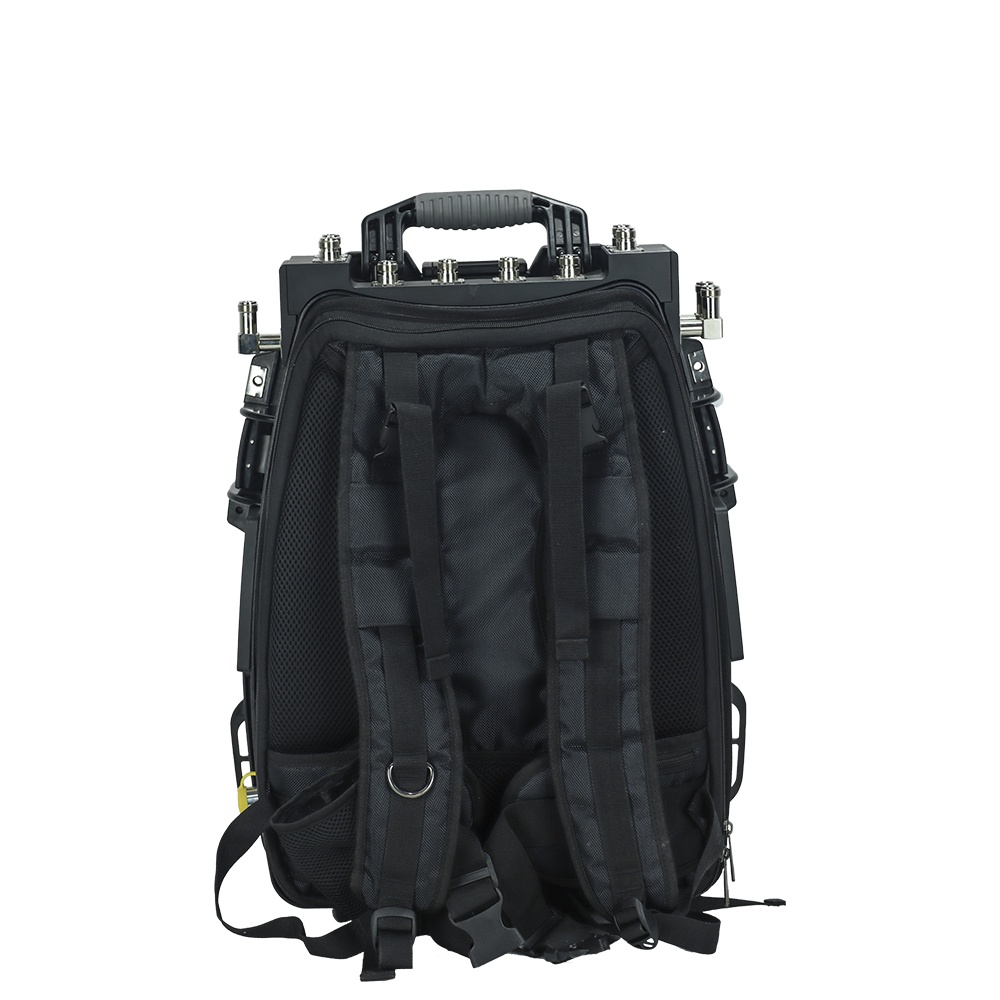

Main engine weight : 12Kg (Manpack 10KG,Antenna 1.5KG,Control Box 0.3KG)
Size:520*400*230mm

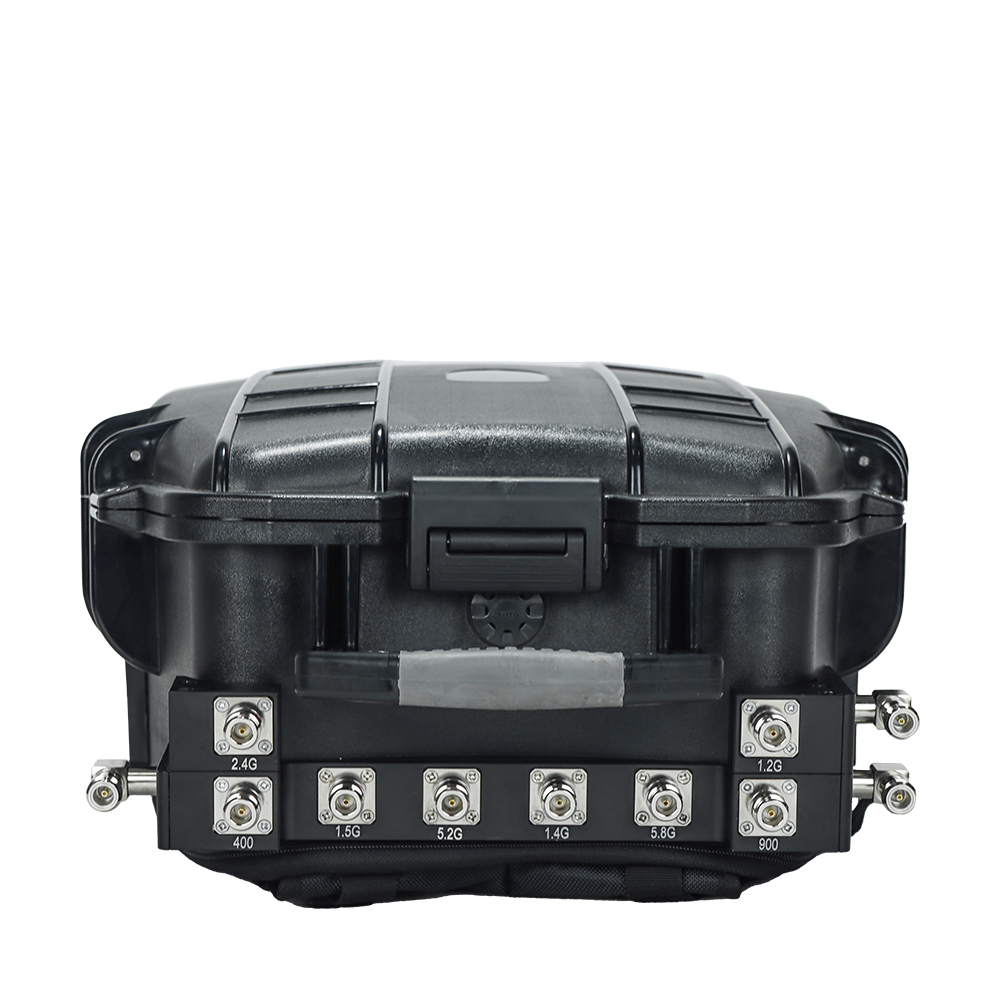

With omni antenna 8 pcs
Jammer Module Number :8

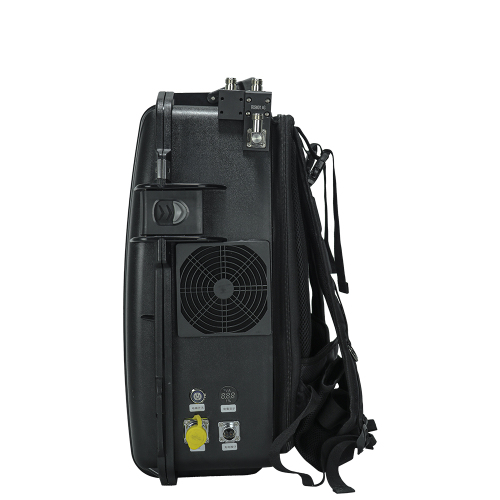

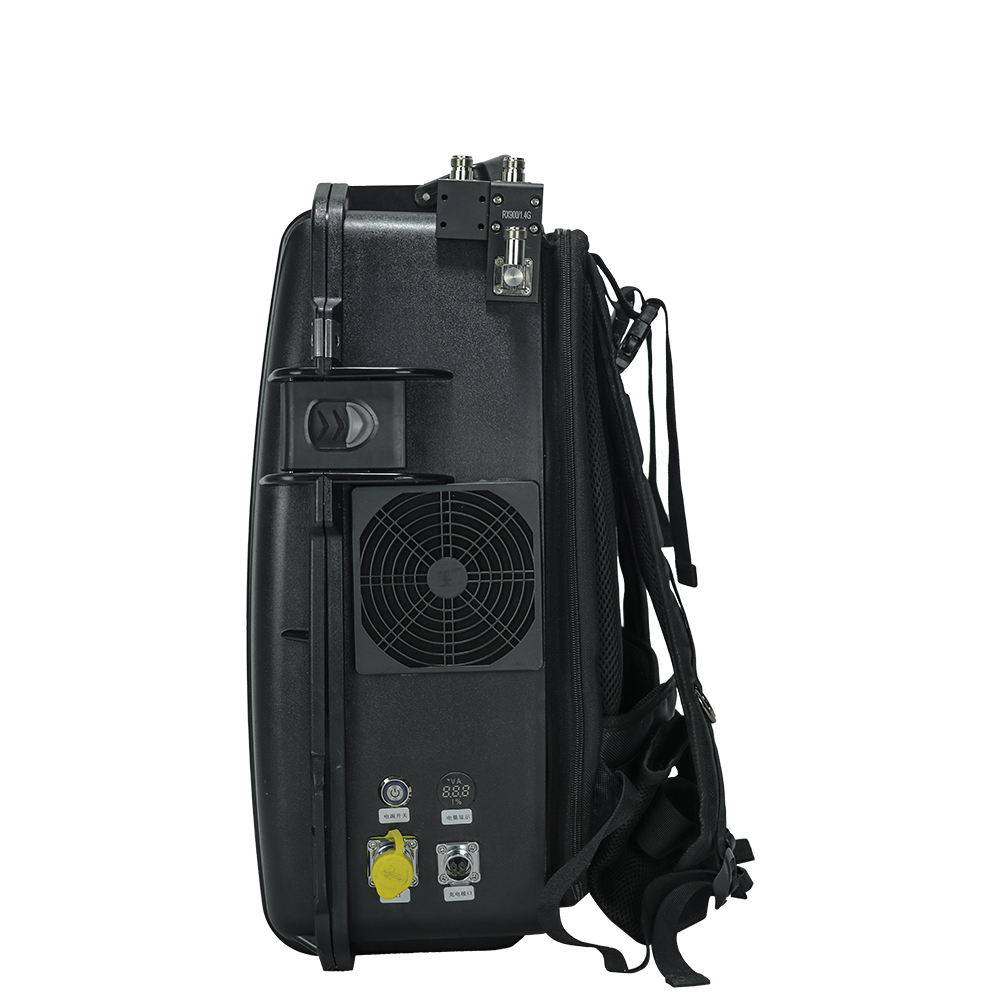

Cooling System:
Systematic Smart Cooling System
Jamming Source :
Noise Technology
Humidity: 30%-95%
Running temperature : -20℃ to +60℃
Inside battery working 1.5h: 24V,25AH
