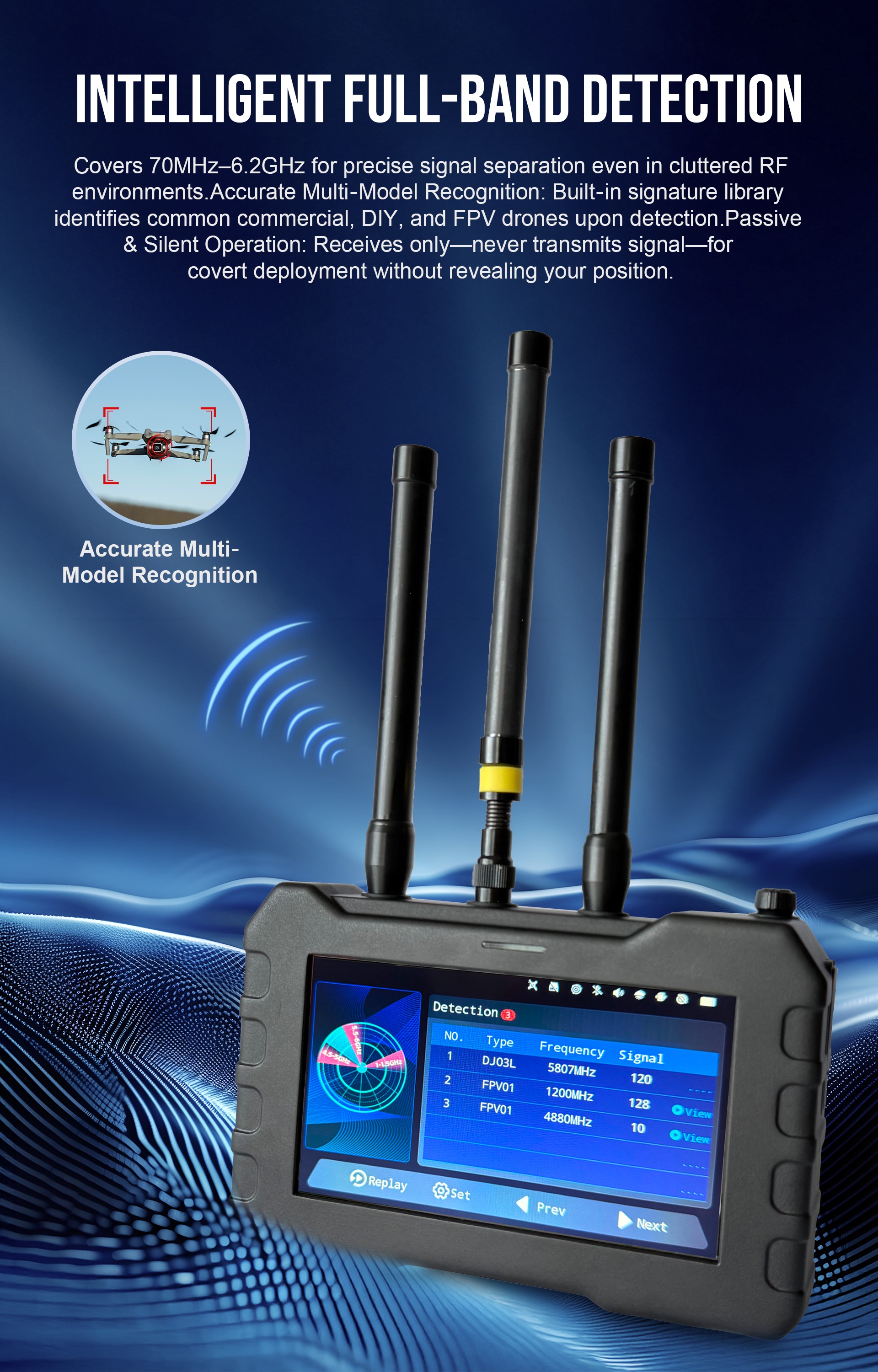

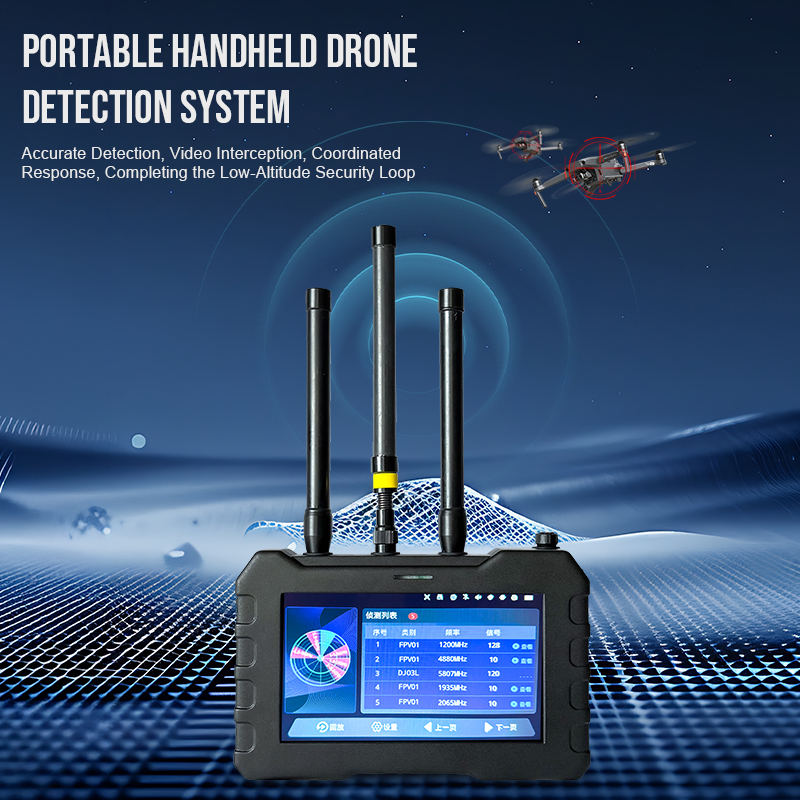

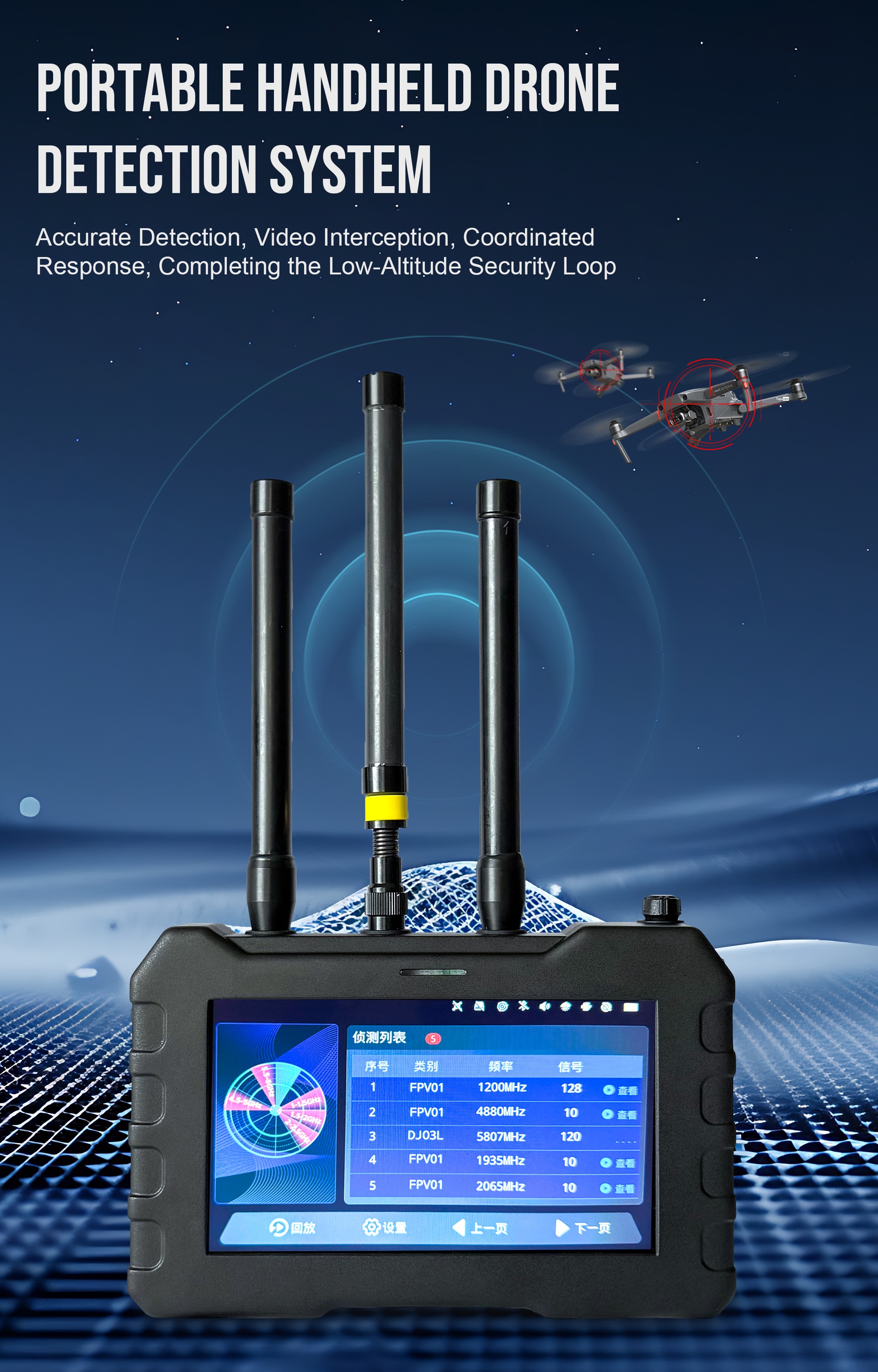

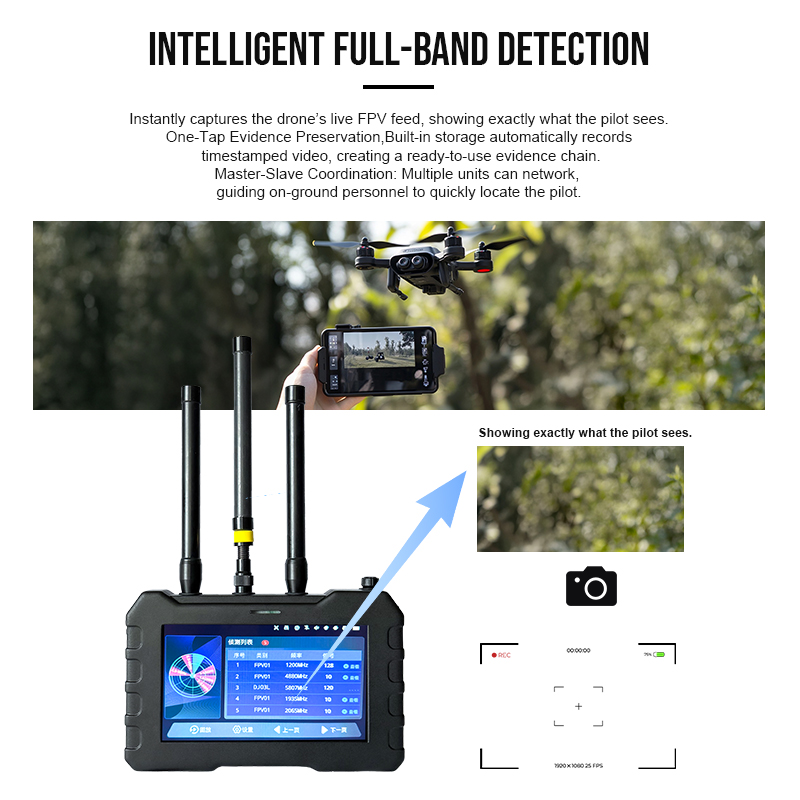

The portable FPV detection and video transmission capture device integrates detection, video interception, and video storage into one system. It features full-band detection, FPV analog video transmission detection, video interception, display control, and video storage functions. In complex electromagnetic environments, it can accurately identify quadcopters, fixed-wing drones, DIY models, and FPV drones, and provide sound, light, and vibration alarms. This device is suitable for scenarios such as routine patrols, critical target protection, unit-level operations, and investigation and evidence collection.

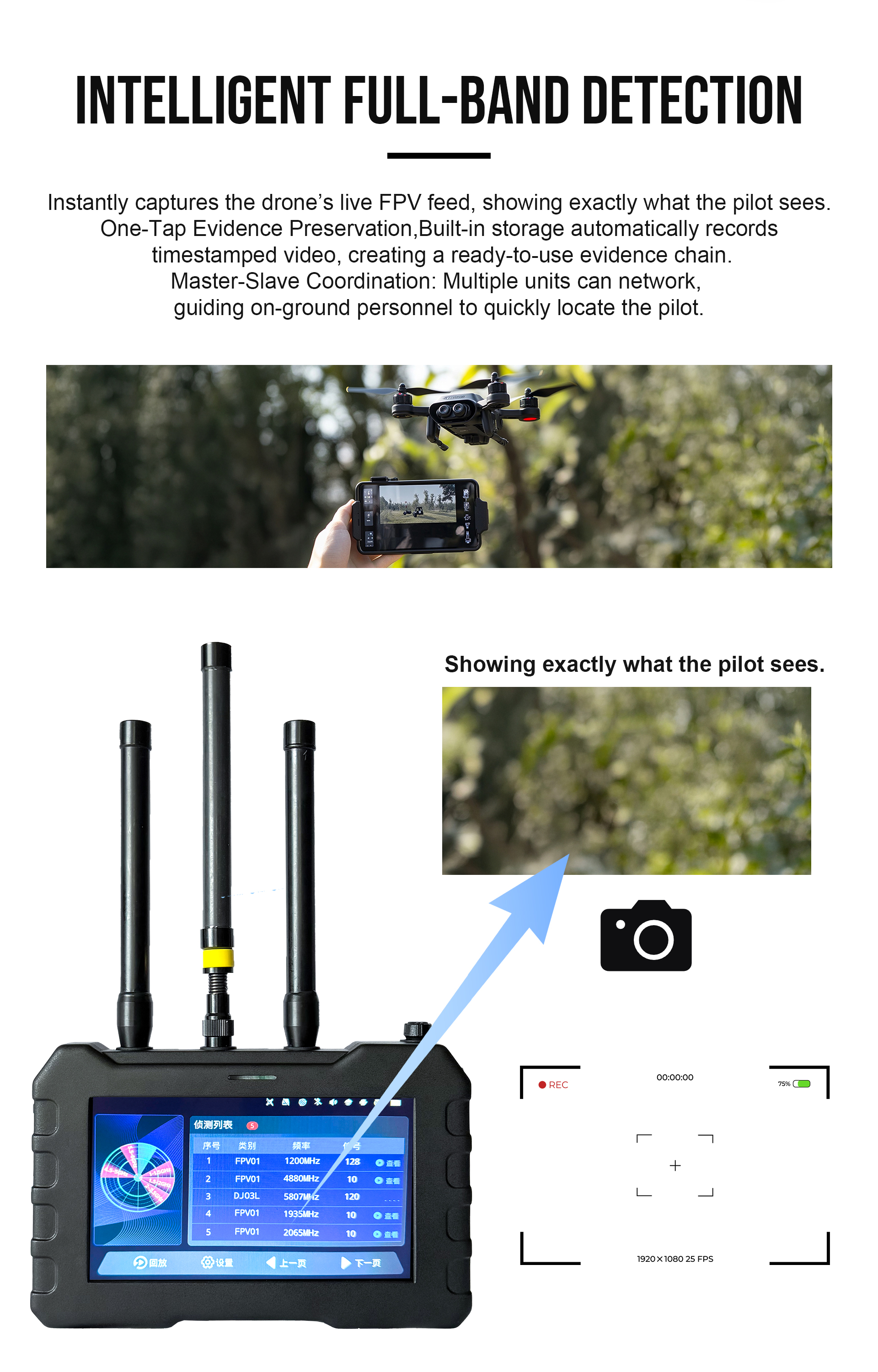

This product can capture analog images.
Technical Parameters
|
Number |
Name |
Specifications |
|
1 |
Identification types |
Supports mainstream drones such as DJI, Autel, Hubsan, as well as FPV racing drones and DIY drones |
|
2 |
Frequency range |
Supports customizable scanning from 70 MHz to 6.2 GHz. |
|
3 |
FPV video transmission detection |
Supports detection of all analog video transmissions within the 500 MHz–6 GHz frequency range (user-customizable) |
|
4 |

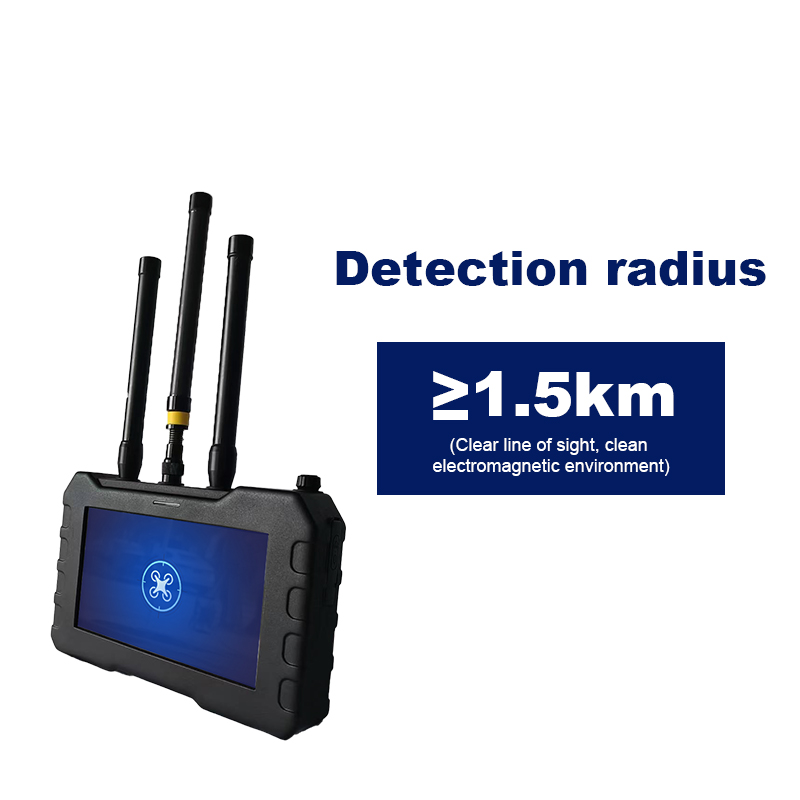

Detection range |
≥ 1.5 km (line-of-sight, clean electromagnetic environment). |
|
5 |
Video capture distance |
≥ 1.5 km (line-of-sight, clean electromagnetic environment). |
|
6 |
Video storage capacity |
≥32 GB memory card, max to 256GB |
|
7 |
Detection response time |
≤3s（8 bands）；≤5s（12 bands） |
|
9 |
Alarm modes |
Sound, vibration, and light |
|
10 |
Screen size |
7-inch touchscreen |
|
11 |
Power supply |
Powered by lithium battery |
|
12 |
Battery capacity |
7000mAh |
|
13 |

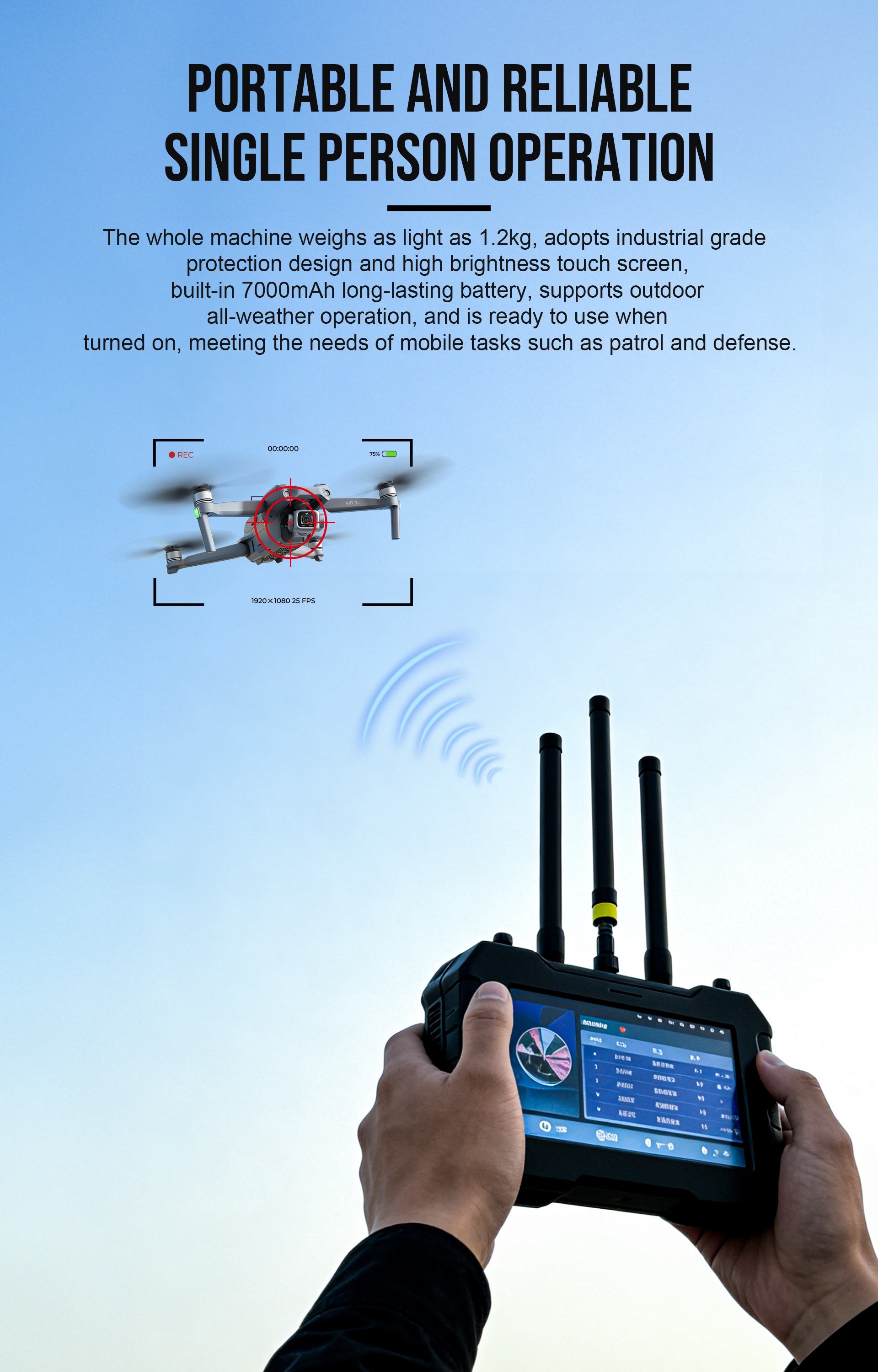

Device weight |
≤ 1.2kg |
|
14 |
Device size |
Length × Width × Height：212mm×137mm×41mm |
