PortableDetector with 12km Long-Range Drone Detection & Decryption System for Large Event Security System

Item No.: 03030
All-scenario drone detection and positioning device integrates, 70 MHz to 6.2 GHz full-frequency
detection, drone and pilot positioning, FPV video capture and storage
  • Detection Frequency Bands:
    70 MHz – 6.2 GHz (Customizable Scan)
  • Detection Distance:
    up to 12km
  • DID/RID positioning range:
    DID≥10km,RID≥3km
  • FPV video signal detection:
    500 MHz – 6 GHz band (customizable)
  • Battery life:
    ≥6 hours (main unit)
Description Review
Description

TTSK-TZ-600A 70MHz–6.2GHz Full-Band Portable Drone Detector Identify, Locate & Track UAV Threats up to 12km

The TTSK-TZ-600A All-Scenario Drone Detection and Positioning System is a comprehensive, multi-functional solution designed for high-performance, long-range counter-drone operations. It integrates full-spectrum detection, precise drone and pilot positioning, and FPV video capture into a single, portable backpack or vehicle-mount system. Capable of detecting threats up to 12km away, it provides security teams with the advanced intelligence and real-time situational awareness needed to protect critical assets, secure events, and conduct field investigations. Key operational advantages include multi-terminal alarm sharing for coordinated team response, flexible deployment across fixed, mobile, and man-portable scenarios, and deep signal analysis for accurate identification and tracking.

    Product Specifications
    Model TTSK-TZ-600A
    Core Function All-Scenario Detection, Positioning & FPV Video Capture
    Detection Frequency Range 70 MHz – 6.2 GHz (Customizable Scan)
    Default Detection Bands 400 MHz, 800 MHz, 900 MHz, 1.2 GHz, 1.4 GHz, 2.4 GHz, 5.2 GHz, 5.8 GHz
    Max Detection Range ≥ 10 km (Mainstream UAVs) / ≥ 2 km (FPV Drones)
    Positioning Capability Drone & Pilot (Controller) Location
    Positioning Range DID: ≥ 10 km / RID: ≥ 3 km
    Positioning Accuracy ≤ 10 m
    FPV Video Detection 500 MHz – 6 GHz Analog Video Transmission
    Video Capture Distance ≥ 1.5 km (LoS, Clear Environment)
    Response Time ≤ 3 s (8 Bands) / ≤ 5 s (12 Bands)
    Alarm Modes Sound, Vibration, Light
    Power Supply Built-in Lithium Battery
    Battery Life ≥ 6 Hours (Main Unit)
    Deployment Modes Backpack, Fixed-Site, Vehicle-Mounted
    Networking & Control Multi-Terminal Alarm Push, RJ45 & Type-C Interfaces
    Weight (Main Unit) ≤ 8 kg
    Dimensions (Main Unit) 400 mm (L) × 165 mm (W) × 500 mm (H)
    Package Aviation Case Included (550mm×400mm×240mm)

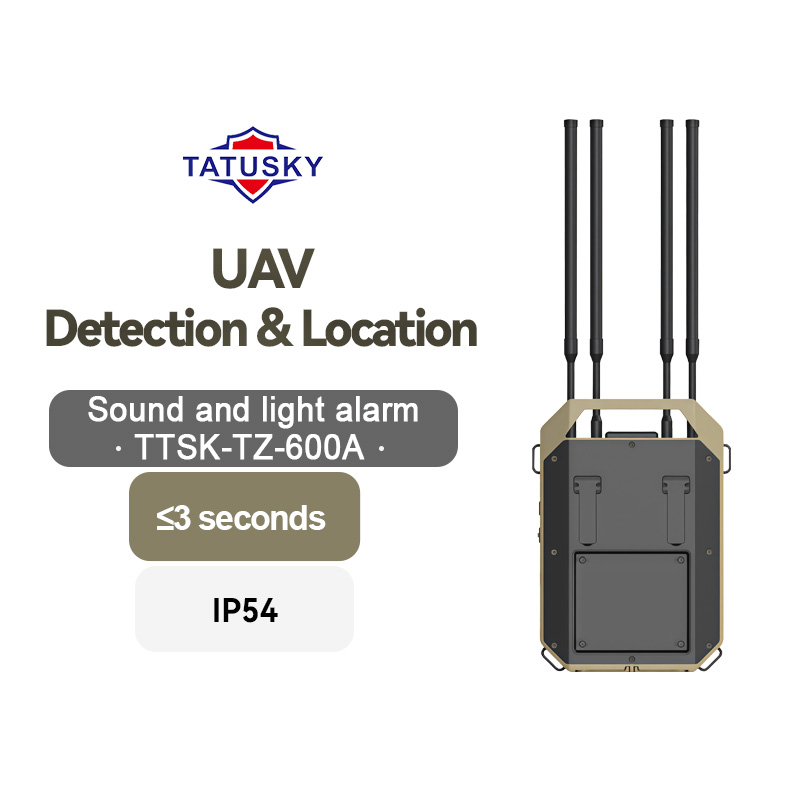

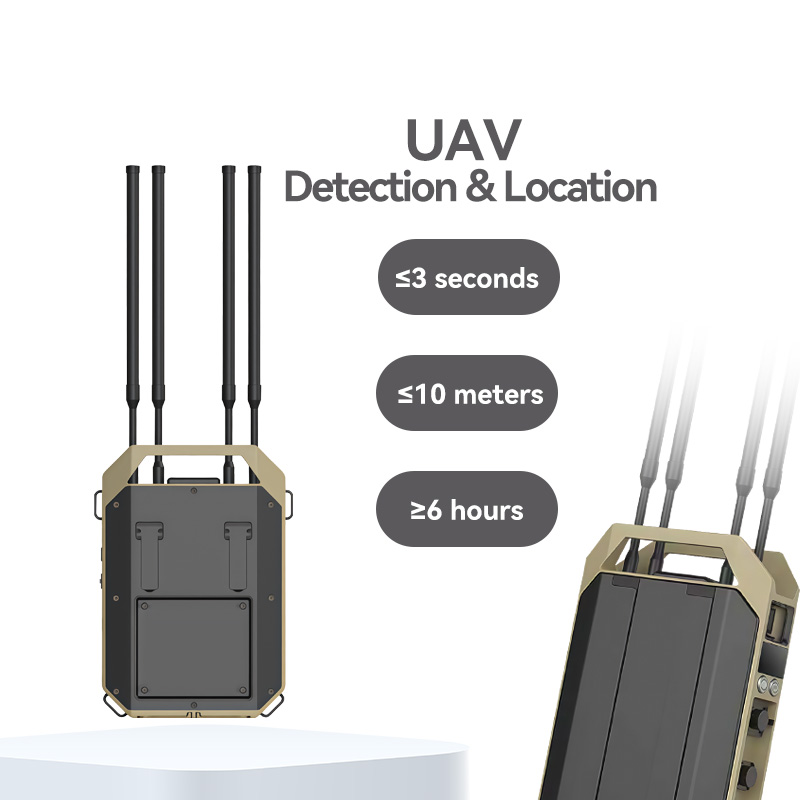

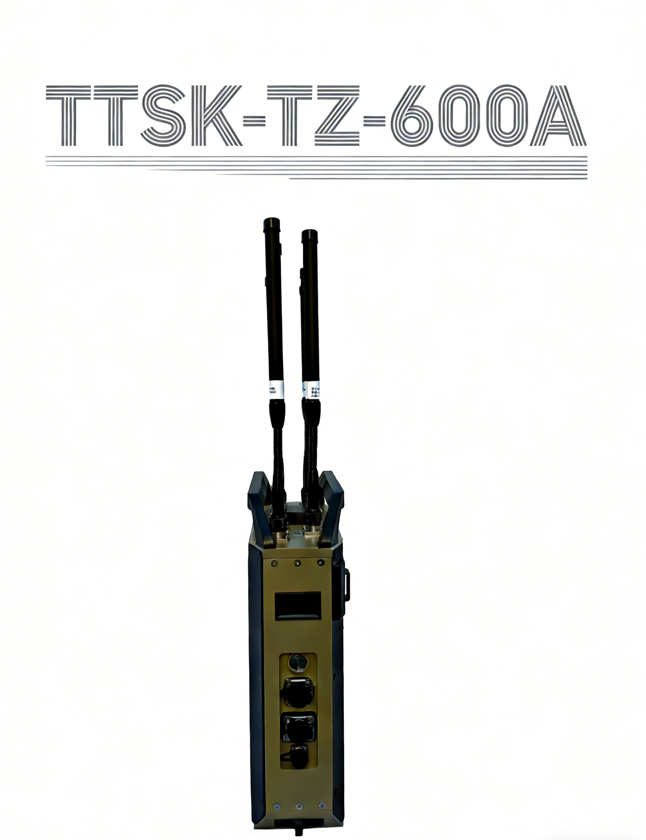

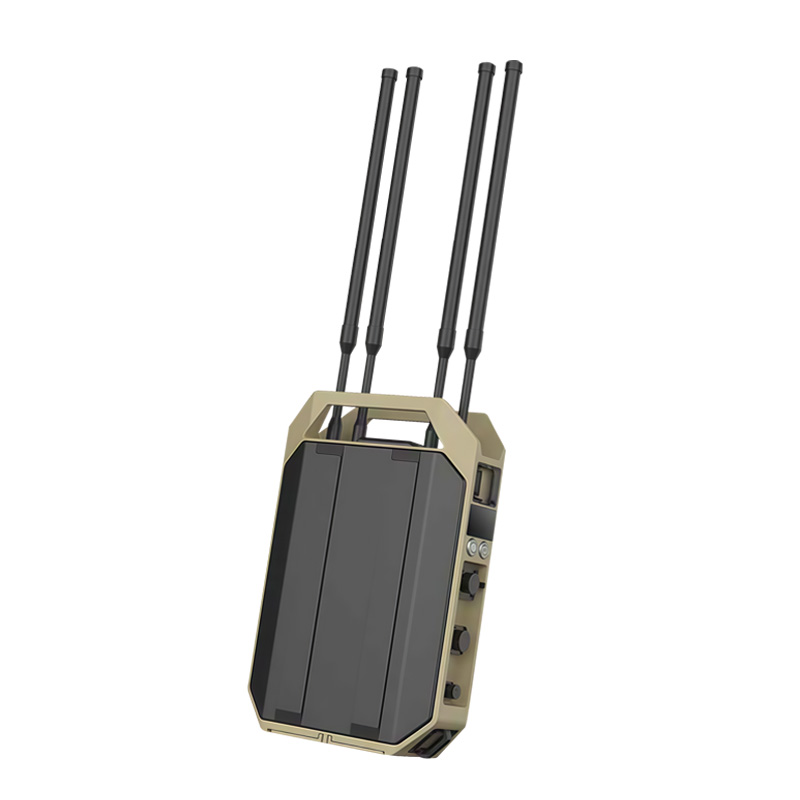

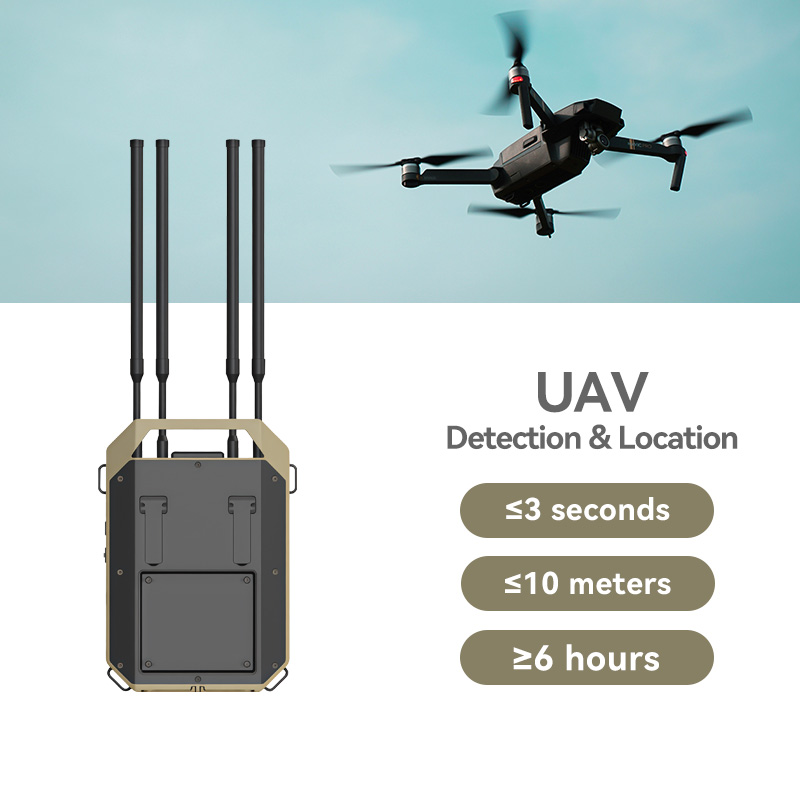

    Product Images

    Frequently Asked Questions
    Q1:How can l get the price?
    A1:We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).if you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
    Q2: How about the delivery date?
    A2: In General, the delivery date will be 5-7 working days for normal buy quantitly. But if bigger order please check us further
    Q3:What is your payment term?
    A3:T/T,Western Union,Money Gram,and Paypal.This is negotiable.
    Q4:What is the shipping method?
    A4:lt could be shipped by sea,by air or by expresS(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
    Q5:How do you make our business long-term and good relationship?
    A5: (1) We keep good quality and competitive price to ensure our customers benefit.
    (2)We respect every customer as our friend and we sincerely do business and makefriends with them,no matter where they come from.
